N.E.S.T

A prototype of a data-informed mountain retreat that promotes Nepal Eco Social Tourism.

N.E.S.T

utilizes Karamba3D as a parametric structural analyzing tool. The actuation of the off-grid wooden accommodation is being iteratively assessed through the impact between digital design and fabrication. Conforming to the remoteness, the high-tech thinking is being pushes to the boundary via innovative construction methodologies designed to tackle both assembly and logistical protocol.

I / Retractable System

A scissor structure that is collapsible, transportable and adaptable to site dimensions.

Set-up of variations for structural analysis

snow load · wind load

Deformities comparison

Effects of additional bracing

Main Arcs

Arc Width : 90 mm

Arc Depth : 300 mm

Snow Load

Displacement : 27.79 cm

Displacement : 27.79 cm


Max Force : -1215.57 kN

Min Force : -3957.27 kN

Axial Forces

Axial Forces

Dominant Wind Load

Displacement : 170.81 cm

Displacement : 170.81 cm


Max Force : 8664.48 kN

Min Force : -8664.48 kN

Bending Moments

Bending Moments

Secondary Wind Load

Displacement : 107.05 cm

Displacement : 107.05 cm


Max Force : 4368.83 kN

Min Force : -4368.83 kN

Bending Moments

Bending Moments

Bracing Arcs

Arc Width : 90 mm

Arc Depth : 300 mm

Bracing Width : 45 mm

Bracing Depth : 90 mm

Snow Load

Displacement : 54.45 cm

Displacement : 54.45 cm


Max Force : -1128.28 kN

Min Force : -4546.27 kN

Axial Forces

Axial Forces

Dominant Wind Load

Displacement : 198.45 cm

Displacement : 198.45 cm


Max Force : 9840.59 kN

Min Force : -9480.59 kN

Bending Moments

Bending Moments

Secondary Wind Load

Displacement : 125.01 cm

Displacement : 125.01 cm


Max Force : 4978.89 kN

Min Force : -4978.89 kN

Bending Moments

Bending Moments

1 : 1 Mock-up of half arc with skin

1 : 1 Mock-up of half arc with skin

By drilling multiple holes at the end of the timber sections, different height can be achieved by pivoting at different holes. The contact point of arcs lies on the top-most pivot where arcs rest on top of each other.

  1. Waterproof Canvas

  2. Black Felt for insulation and absorbing heat

  3. Yak’s Wool locally sourced

  4. Black Felt for further insulation and heat absorption

  5. Fabric as a finish

1 : 20 Cross Section

1 : 20 Cross Section

1 : 10 Scaled Model

1 : 10 Scaled Model



Stage I findings

  • Scissors have the advantage of production off-site

  • Quick deployability

  • No scaffolding required

  • Self-supporting single arch

II / Portal Frame System

A spiral structure that create a transition into a private retreat.

Structural Framing


Structural geometry

Structural geometry



The upper ribs and the lower ribs connected at a kink. The height of the lower ribs gradually increase as it revolves around the radial grid, creating a larger cantilever with the upper ribs.

More angled ribs have inner column to support

More angled ribs have inner column to support



Frame catalogue

Frame catalogue

Top Ring



Option 1 : Rotatable joint

required less spacing on the top ring.

Detailed sections

Detailed sections

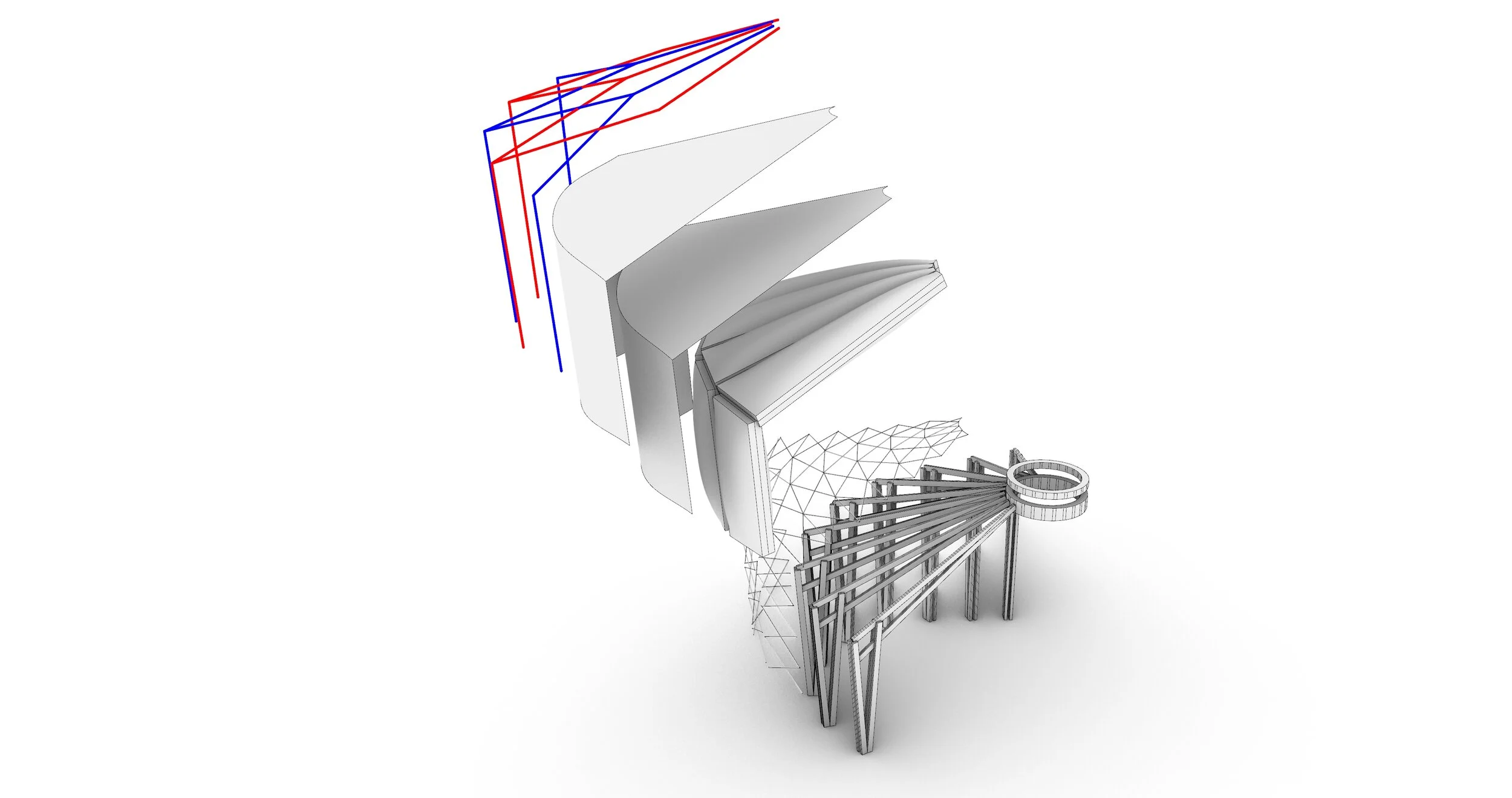

Exploded axonometry

Exploded axonometry

ring joint 20190520 (2b).jpg

Option 2 : Top ribs sit on top ring

L-bracket preventing rotation on the y-axis.

Detailed section 1

Detailed section 1

Detailed section 2

Detailed section 2

Skin




Skin layering [ outer to inner ] : Straps, jute, waterproof layer, insulation, support wires

Skin installation procedures



Detailed plan

Detailed plan

Detailed section

Detailed section


Close-up detail of skin connection at the top ring

Close-up detail of skin connection at the top ring

Skin schedule

Skin schedule

Construction Sequence

1 : 5 Scaled Model

1 : 5 Scaled Model



Stage II findings

  • A combination of portal frame and fish-bone structure is being developed to enhance structural efficiency

  • Details are being unified to reduce construction time

  • The density of ribs are optimized according to structural performance, skin dimensions and spacing at the top ring

III / Ruled Surface System

A structure consist of two truncated cones made up of ruled surfaces with long timber members capped by an oculus window that creates a calm space to retreat under the beauty of the Nepalese sky.

Design Overview



The geometry of the design composed of a doubly ruled truncated cone at the lower portion to withstand the structural load of the floor plate and a more porous ruled truncated cone at the upper portion sliced by a rotated plane to form the oculus ring.

Foundation Drawing.png

Foundation

Floor ring




03.01 - Floor ring segment.png


03.03 - Floor ring.png

Oculus ring




04.05 - Oculus ring map.png

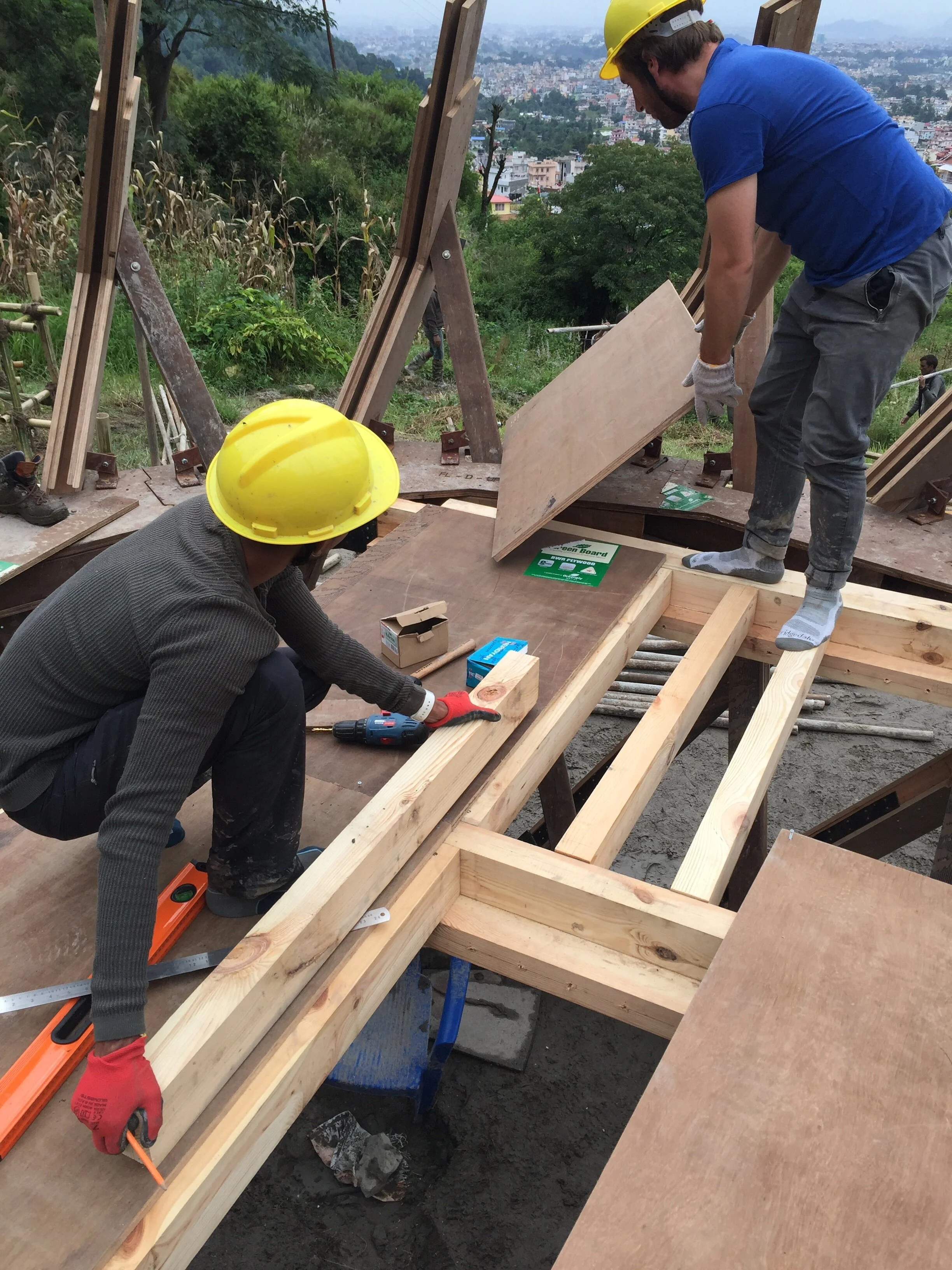

Construction sequence

N.E.S.T is a project of IaaC, Institute for Advanced Architecture of Catalonia

developed in the Master of Advanced Architecture in 2019/20 by:

Students: Abhay Devidas, Aishath Nadh Ha Naseer, Alaa Aldin al Baroudi, Ankita Alessandra Bob, Antonios Nikitaras, Anton Koshelev, Aysel Abasova, Doruk Yıldırım, Fiona Demeur, Fouad Hanifa, Holly Carton, Hongyu Wang, Ivan Marchuk, Jae Shin, JingWen Chiou, Justin Sheinberg, Megan Smylie, Pratik Borse, Sri Sai Tarun, Surayyn Uthaya Selvan, Tarek Kassouf, Timothy Ka Kui Lam, Tolga Kalcıoğlu, Yara Tayoun, Yimeng Wei

Faculty: Manja van de Worp, Raimond Krenmuelle, Edouard Cabay

Student Assistant: Elliott Santos, Yi Fan Liao
